Input Supply Voltage 20VAC±%10
Maximum Power
Consumption
10W (Control Circuit)
+ Motor power
Feed Protection Fuse Protected (8A)
Language Options Turkish and English
Standard Interface 2 Rows, 16 Character
LCD Screen, 4-Button
Set, Optional
External
LCD Interface
Audio Warning With the Buzzer
Dimensions (mm) Without Box: 275 x
105 x 21 (Width x
Height x Height) With
Box: 310 x 112,6 x
30 (W x L x W)

Technical Features
Door Movements
Serious and Irregular

The advanced software softens the S in the navigation ramps and permits smooth but smooth movements of the door movements with no limit switch-free algorithm

Automatic Door Status Detection
No Limit Switch Required

The door operator does not need a limit switch for operation. Door width, door open-close positions are detected automatically

Possible Door Jam

When the door is jammed, the buzzer is turned back on. The jamming is passed slowly through the perceived zone to prevent damage to the passengers and the door

Access to the Menu
Delegation

In terms of security, necessary needs and ease of setup, access to the menu has been authorized. Different levels of authority have been assigned to access the menu: producer level, basic level and restricted level

Application Flexibility
Wide Parameter Capability

For manufacturers, parameters such as motor reduction ratio, engine revolutions, drive pulley circumference, spoon opening zone, etc. can be entered for application flexibility

User Settings

For user settings, defined speed settings in centimeters per second and defined ramp paths in centimeters can be specified

Door Operation Attachment
Counter Support

Operation of the door can be monitored by the on/off counter

Fully Integrated Operation
Various Output Signals

The door can be fully opened, completely closed, and can output jammed output signals to operate the control panels fully integrated

Keyboard

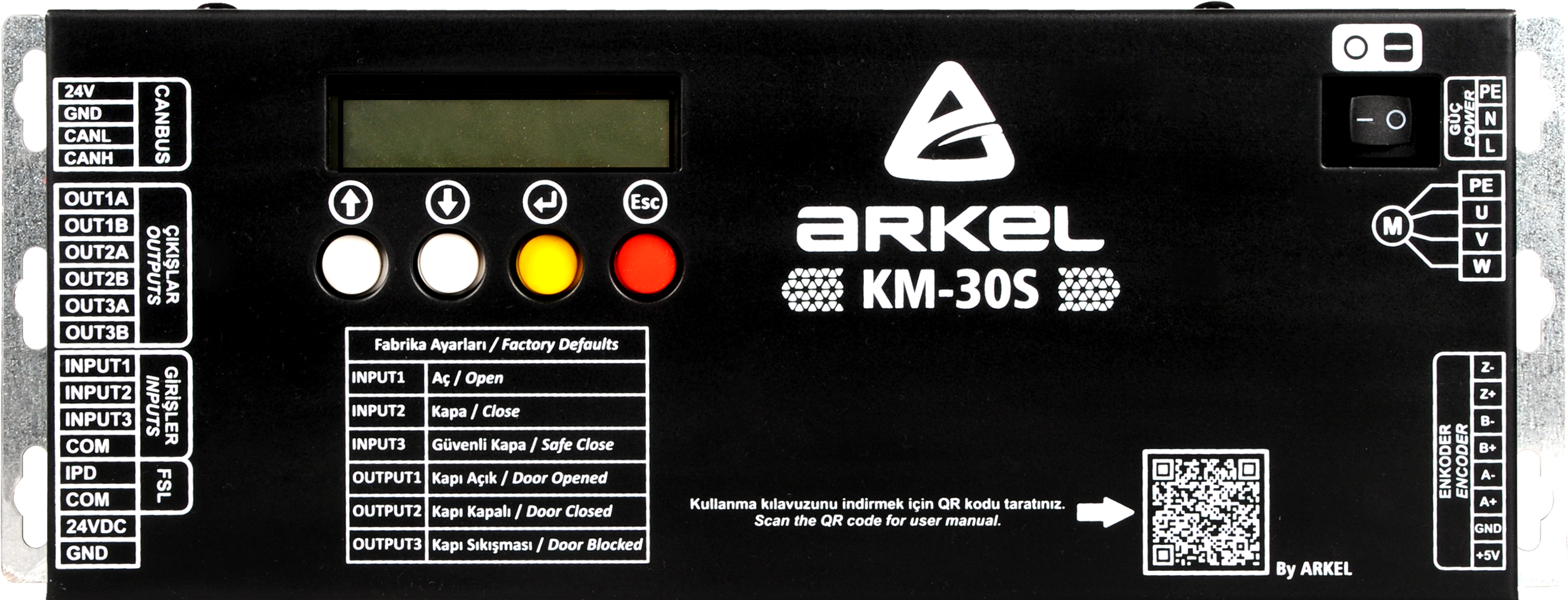

All system parameters can be adjusted using the KM-30S keypad

Door Motor Control
Reduction Option

220V BLDC control with or without door gear reducer
Other Features

Engine Type Max. 200W
Engine Output Power 0,65 A (Nominal)
Motor Control Shape Vector Control
Engine Protection Overloading and Short Circuit Protection
Encoder Type 3 Channel Incremental Encoder
Encoder Voltage 5 VDC
Resolution 100-2048 pals Model
Door Width 50 - 300 cm
Door Speed 20 cm/sn – 99 cm/sn
Door Speed (Slow) 5 cm/sn – 30 cm/sn


  • Door fully open / fully closed
  • Door jam or photocell active output
  • Relay contact output. For 3A, 250VAC or 30VDC
  • Door open / close signal
  • Slow signal / fast signal
  • Photocell signal
  • Ground signal
  • KM-30S door card is suitable for use on fire lift doors
  • With slow speed signal input, the photocell signal is blocked in long time photocell cutting and the doors are closed at slow speed (Nudging mode)
  • Door speed, door position and operating status in normal operation, and error in case of normal operation
