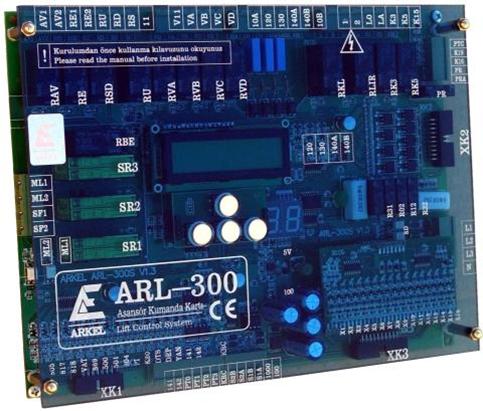

ARL-300 Lift Control Card
Definite solutions for hydraulic elevators and elevators with ropes
| Number of Stops | 24 | Control Type | Simple Control, One Way Pickup, Two Way Pickup |
| Drive Type | Double Speed, Hydraulic, VVVF | Group Control | 4 |
| Serial Communication | With cabin | Maximum Elevator Speed | 1.6 m/sec |
| Cabin Position Information | Magnetic Switch | Automatic Door Control | Single Door, Double Door |
| Door Bridging | Available | Display Output | 7 Segment, Gray/Binary Code Output |
| Programmable Input / Output | N/A | Error Record | Up to 60 Faults |
| Language Options | Turkish, English, Russian, Dutch, Romanian, German, Italian | Compliance with Standards | EN 81 / 1-2 + A3 |
- User Control
- System parameters that can be adjusted by the user using the LCD and buttons on the card.
- Screen
- Screen showing the state of the elevator in normal operation, with the error code in case of an error
- Adjustment of contrast (brightness) of LCD Display by keys on the card
- Unauthorized Use Prevention
- Password and PUK.
- Menu password protection and privacy
- Firefighter service and emergency function
- Release function in case of panic entry and panic
- Single call, last call and multiple call acceptance optionally adjustable at the motorman control
- Adjustable parking stop and duration to park
- Limit the maximum number of records that can be taken from the cabinet
- Ability to set the direction arrow for the indicators as direction of collection direction or motion + direction of collection
- Setting the start of the counting of the outputs that are set as Gray or Binary code from the menu
- Gong time can be set when door is open, slowly passing or after stopping
- First and last stop settings of elevators with different stops within the group can be done from the menu
- Adjustable maintenance time and system locking at the end of the maintenance period
- Can record a desired stop with the keys on the card and can randomly register the desired number of times
- Manual movement at slow speed with the keys on the card
- Shaft learning option
